[Solved] eBlocker Mobile access to LAN-devices

31 Posts
3 Users
3 Reactions
421 Views
(@Anonymous)
New Member Guest
Joined: 1 Sekunde ago
Posts: 0
Topic starter

Understood that, if ‘eBlocker Mobile’ is installed on an iPad, you can use that VPN-connection to safely access devices in the the home LAN trough that same connection when away from home. If correct, would somebody be kind enough to tell me how?

Rob

Client OS
Browser
eBlocker hardware
Client OS version
eBlockerOS version


ReplyQuote
(@pio78)
Member
Joined: 6 Jahren ago
Posts: 329


Hi Rob,

yes that is right, I use this every day!

You have to enable for your device "Remote device my access resources in local network"



regards

PIO78





ReplyQuote
(@random)
Illustrious Member Admin
Joined: 6 Jahren ago
Posts: 2073


See also here for a screenshot of the switch:  https://eblocker.org/docs/the-eblocker-mobile-function/

THX!



ReplyQuote
(@Anonymous)
New Member Guest
Joined: 1 Sekunde ago
Posts: 0
Topic starter

@random
@Pio78

Great, thanks to the both of you! (and, of course, have a nice day)

Rob



ReplyQuote
(@Anonymous)
New Member Guest
Joined: 1 Sekunde ago
Posts: 0
Topic starter

@pio78
Hmm... Checked the link from @random, but ‘eBlocker Mobile’ does already work. Although probably not a typical eBlocker-question, i would like to now how to get to files on my NAS with my iPad when away from home. Hints are welcome 😉



ReplyQuote
(@pio78)
Member
Joined: 6 Jahren ago
Posts: 329


OK, your files are on the NAS, at home you can access the file.

How do you do that? With the browser over HTTP/HTTPS? Or a Client-App on your iPad?

🤔



ReplyQuote
(@Anonymous)
New Member Guest
Joined: 1 Sekunde ago
Posts: 0
Topic starter

@pio78

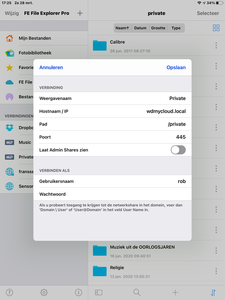

On my iPad with the app ‘FE File Explorer’ with the enclosed settings.

On my iMac i use Forklift with similar settings.

0F03430D 0EAE 42EC A5A5 6786E2DC95EE


ReplyQuote
(@pio78)
Member
Joined: 6 Jahren ago
Posts: 329


okay,

for yout hostname /ip of your NAS give the IP Address of the NAS in this field.

grafik

(like 192.168.yyy.zzz)

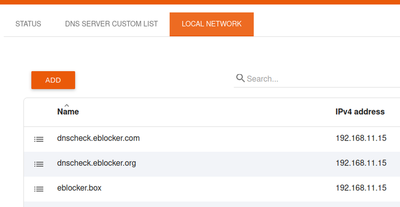

The second sollution, go to eBlocker "DNS Firewall - local Network" and set the Hostname an IP

grafik

here an example:

grafik



try

😀





ReplyQuote
(@Anonymous)
New Member Guest
Joined: 1 Sekunde ago
Posts: 0
Topic starter

@pio78

Thanks for the hints, but i think i have a DNS-problem.

Switched OFF WiFi in my Fritz!Box 7590 (IPv6 switched off already

iPhone set up for ‘eBlocker Mobile’ and connected to 4G-network (eBlocker-icon and controlbar are shown when visiting websites)

iPhone finds eBlocker-dashboard and -settings immediately, but can’ find any other local device

Included ‘wdmycloud.local’ in ‘DNS Firewall / LOCAL NETWORK’ (as instructed), but that didn’t help iPhone to find the NAS

Changed ‘DNS Firewall / STATUS’ from ‘Default’ (router-address 192.168.178.1) to ‘Custom List’ (1.1.1.1), but without any result

Enough info to bring me a step further?

Rob



ReplyQuote
(@pio78)
Member
Joined: 6 Jahren ago
Posts: 329


Hi Rob,

have you tried the first solution, to give the APP the host ip of your NAS?







ReplyQuote
(@random)
Illustrious Member Admin
Joined: 6 Jahren ago
Posts: 2073


@robfranssen-fr Are you sure Remote Access is set for your mobile device as here:

THX!



ReplyQuote
(@Anonymous)
New Member Guest
Joined: 1 Sekunde ago
Posts: 0
Topic starter

@random

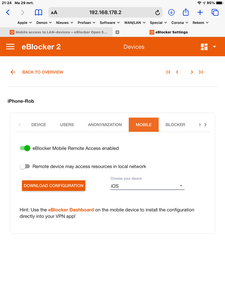

Enclosed the corresponding screenshot for my eBlocker.

Tomorrow i’ll switch on the ‘Remote device may connect etc’, generate a new ovpn-file and try again

F950BBF6 65AD 4A9D 9BC2 6800C2644164


ReplyQuote
(@Anonymous)
New Member Guest
Joined: 1 Sekunde ago
Posts: 0
Topic starter

@pio78

Yes, i replaced ‘wdmycloud.local’ with the (fixed) local IP-address my NAS got from my Fritz!Box, but that didn’t help. Sorry for not mentioning this change in my previous message.

Hope the newly discovered setting ‘Remote device may connect etc’ will help, but can’t try now by switching off WiFi in the router without causing a revolution in the family. Will do tomorrow.



ReplyQuote
(@Anonymous)
New Member Guest
Joined: 1 Sekunde ago
Posts: 0
Topic starter

@pio78

@random

Switched OFF WiFi in Fritz!Box

Switched ON ‘Remote device may connect etc.’ (necessity!) in Settings/Devices/iPhone/MOBILE

In ‘FE File Explorer Pro’ on my iPhone, replaced ‘wdmycloud.local’ by its fixed IP (necessity!) (for unknown reason, the addition in Settings/DNS Firewall/LOCAL NETWORK of ‘wdmycloud.local’ = fixed IP is not good enough)

Under these conditions i can get to the files on my NAS using ‘FE File Explorer Pro’ without WiFi and using the 4G-network. Done!! Works!

Thanks to the both of you, Rob



ReplyQuote
(@Anonymous)
New Member Guest
Joined: 1 Sekunde ago
Posts: 0
Topic starter

PS For your info

Under the conditions described above, i also can connect to ‘fritz.box’, mentioned in Settings/DNS Firewall/LOCAL NETWORK as well



ReplyQuote
(@random)
Illustrious Member Admin
Joined: 6 Jahren ago
Posts: 2073

Posted by: @robfranssen-fr

Switched ON ‘Remote device may connect etc.’ (necessity!) in Settings/Devices/iPhone/MOBILE

Great you finally found the spot @pio78 pointed you to in his very first post. BTW: The screenshot I‘ve linked above is from the docs document you said you know about already... 🤔 Probably we need to rework the docs to point this out more prominently for „quick readers“ 🧐

Posted by: @robfranssen-fr

In ‘FE File Explorer Pro’ on my iPhone, replaced ‘wdmycloud.local’ by its fixed IP (necessity!)

This is not a necessity. If configured correctly you can always use a domain name instead of the device IP.

You might want to share a screenshot of your local eBlocker DNS config (DNS FW>Local Network) to get help with this as well. While connected to eBlocker Mobile please also share a Traceroute to eblocker.org (see here)...

THX!



ReplyQuote
(@Anonymous)
New Member Guest
Joined: 1 Sekunde ago
Posts: 0
Topic starter

@random

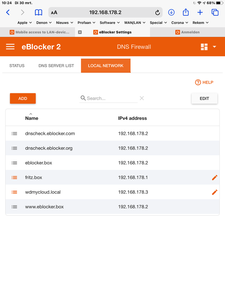

Screenshot of local DNS-settings in eBlocker

7EB40AC2 29CD 410A 8201 D7AD20A58EF6

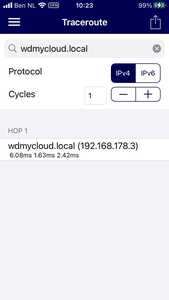

Screenshot of Traceroute on iPhone WITH WiFi

83135875 F6B3 4CB2 8551 B9057380CB48

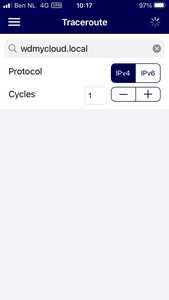

Screenshot of Traceroute on iPhone WITHOUT WiFi

BFA6CCDF EF21 435F 964D 03894FD293C7

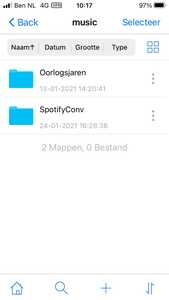

Screenshot of FE Explorer Pro with IP-address of NAS

035D4621 323A 46E7 A557 3E53D6830D00

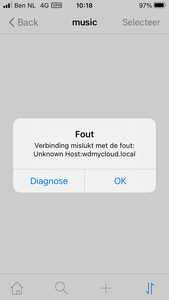

Screenshot of FE File Explorer Pro with domain name ‘wdmycloud.local’

45ECD190 D6E8 48B2 9402 041C0480BA48

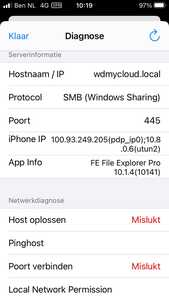

and the diagnosis supplied by FE File Explorer Pro

C3B5D715 A6F1 4F0E 8E5E BF2D2710F864

Grz, Rob



ReplyQuote
(@Anonymous)
New Member Guest
Joined: 1 Sekunde ago
Posts: 0
Topic starter

@random

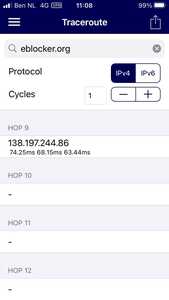

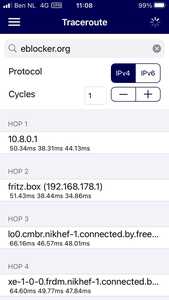

“also share a Traceroute to eblocker.org” as requested

9A9666BE 8418 4354 818F 41D9C3B487DD
8F4FC476 2ACF 42A9 9460 26DB026CB6E2
EB4D1400 2259 44A2 98AF 7DD862F52BE4





ReplyQuote
(@random)
Illustrious Member Admin
Joined: 6 Jahren ago
Posts: 2073


Are you sure eBlocker is set to be the DNS for your clients (ie. eBlocker's DNS FW is enabled)?

To verify, just add a random domain name (under DNS FW>Local Network) like "this-is-my-local-raid-domain.box" pointing to the local IP 172.168.178.3. Then try to access this domain from within your LAN and (afterwards) from within eBlocker Mobile. (Yes, it's OK to leave the other entry "...local" pointing to ...178.3 in the config too).

Alternatively you could do a nslookup (for any domain / ie. eBlocker.org) to see which DNS server is taking the request. Under macOS there seems to be "dig" (instead of nslookup), as discussed here: https://www.a2hosting.com/kb/getting-started-guide/internet-and-networking/troubleshooting-dns-with-dig-and-nslookup (sorry, I'm on win and have no clue about macOS).

THX!



ReplyQuote
(@Anonymous)
New Member Guest
Joined: 1 Sekunde ago
Posts: 0
Topic starter
Posted by: @random

To verify, just add a random domain name (under DNS FW>Local Network) like "this-is-my-local-raid-domain.box" pointing to the local IP 172.168.178.3. Then try to access this domain from within your LAN and (afterwards) from within eBlocker Mobile. (Yes, it's OK to leave the other entry "...local" pointing to ...178.3 in the config too).

Alternatively

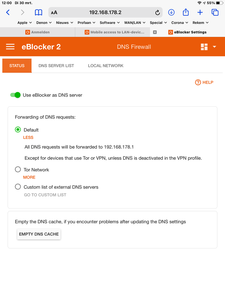

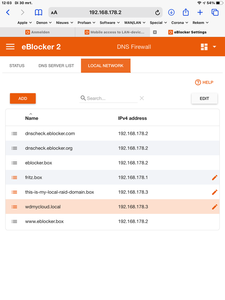

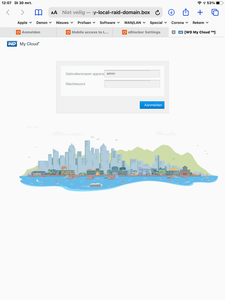

To start with, the requested verification via LAN (via G4 will take a bit longer)

241378E0 8D78 43C2 BB24 55640A11D4C1
75142CD4 73C9 45B8 A0EC A9584B4A3825
070EAC29 AE83 4D9A B47C 948D2861E3BF


ReplyQuote
(@Anonymous)
New Member Guest
Joined: 1 Sekunde ago
Posts: 0
Topic starter

@random

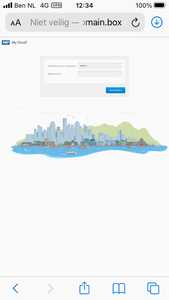

Please find enclosed the Safari-screenshot from iPhone connected to 4G

74202F42 17A7 4FA5 86F7 207ABFE1BF4E


ReplyQuote
(@Anonymous)
New Member Guest
Joined: 1 Sekunde ago
Posts: 0
Topic starter

@random

This is what you are looking for?

================================================================================
NSLookup Results of eblocker.org
--------------------------------------------------------------------------------
Device Name : iPad Rob
Device Version : 14.4.2
Date/Time : Tuesday, 30 March 2021 at 12:47:01 Central European Summer Time
Query : eblocker.org
Server Address : Auto
Force Authorative : No
Query Type : ANY
Query Class : IN
Timeout : 5s
================================================================================
---[ ANSWER SECTION ]---------------------------------------------------------
eblocker.org 21599 IN SOA ns.udag.de
Email: hostmaster@united-domains.de
Serial: 2020102101
Refresh: 10800
Retry: 3600
Expire: 604800
Minimum TTL: 3600
eblocker.org 21599 IN NS ns.udag.net
eblocker.org 21599 IN NS ns.udag.org
eblocker.org 21599 IN NS ns.udag.de
eblocker.org 3599 IN MX mxlb.ispgateway.de
Preference: 10
eblocker.org 599 IN A 174.138.100.168
eblocker.org 599 IN TXT v=spf1
a
mx
?all
eblocker.org 599 IN TXT google-site-verification=3UFP-cxEFaLyyZhD_1Ms7hY0Q-9suXzpPEiPOL7BhS8

---[ AUTHORITY_SECTION ]------------------------------------------------------

---[ ADDITIONAL_SECTION ]-----------------------------------------------------

================================================================================
Results provided by NSLookup 1.5.5 for iPhone/iPod/iPad
NSLookup can be found at http://itunes.bejbej.info/nslookup
================================================================================



ReplyQuote
(@Anonymous)
New Member Guest
Joined: 1 Sekunde ago
Posts: 0
Topic starter

@random

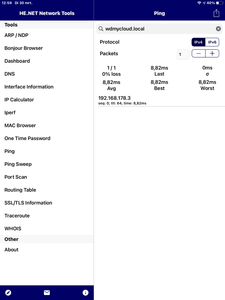

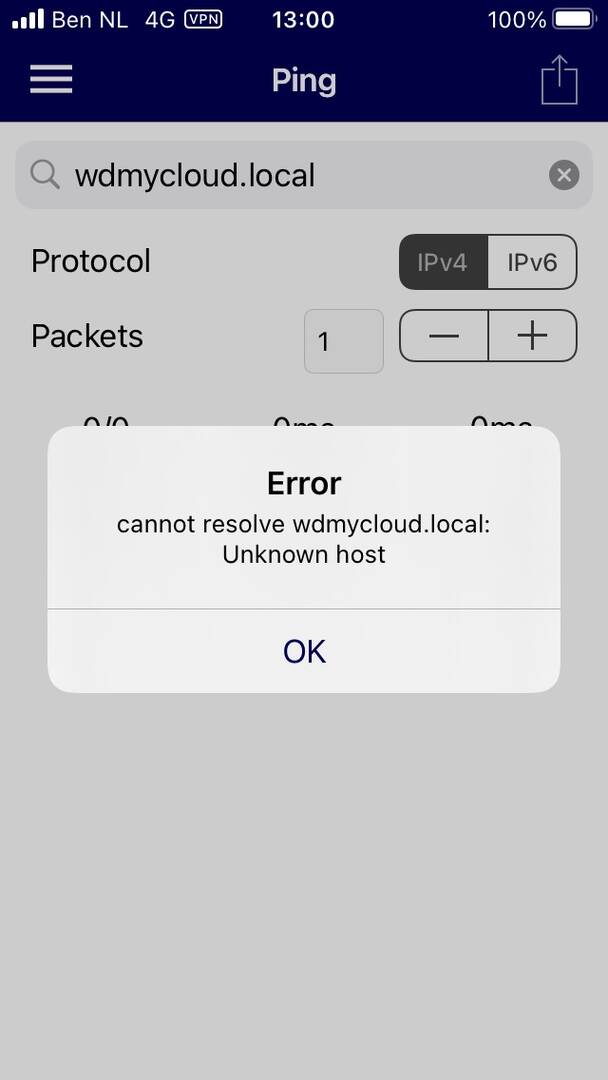

Das ‘Tüpfelchen auf das i’, Ping with WiFi and Ping with 4G ...

93D630F3 D2B0 4D3D 9D23 965BC8BE08C1
B9F4D5D6 F723 4876 9DB6 05F3CAE0BBAE


ReplyQuote
(@random)
Illustrious Member Admin
Joined: 6 Jahren ago
Posts: 2073

Posted by: @robfranssen-fr

please find enclosed the Safari-screenshot from iPhone connected to 4G

Hm. So to me this looks like everything is working well with the newly added domain. Just redo the same with a new domain you desire. Issue solved?

Posted by: @robfranssen-fr

Das ‘Tüpfelchen auf das i’, Ping with WiFi and Ping with 4G ...

Not sure what the „Tüpfelchen“ is as you tried the same .local address again (with same result as above - which is expected).

THX!



ReplyQuote
(@Anonymous)
New Member Guest
Joined: 1 Sekunde ago
Posts: 0
Topic starter

@random

Well.. , i thought i had an issue in that Ping with WiFi gave the result shown, but Ping without WiFi gave an error as shown as well.

In honor of an eBlocker-team-member i created a domain ‘random.box’ and - believe it or not - it can be accessed with or without WiFi. Must be a ‘special’ domain 😉

So, i suggest we forget about it; my NAS can be accessed while away from home using IP-addresses (both from my iPhone, my iPad and my MacBook) and accessing my NAS was what it was all about.

Thank you for the support and enjoy the good weather!

Rob



Random reacted
ReplyQuote
(@Anonymous)
New Member Guest
Joined: 1 Sekunde ago
Posts: 0
Topic starter

@random

Looking back...

iPhone on 4G-network and the entries ‘random.box’, ‘random.local’ and ‘wdmycloud.local’ in Settings/DNS Firewall/LOCAL  NETWORK

random.box connects fine, as reported before,

random.local does NOT connect and

wdmycloud.local does NOT connect either

Looks like the issue i thought having is related to the ‘extension’ .local

I can’t say this is true for everybody, but it is true in my situation.

Rob



Random reacted
ReplyQuote
(@random)
Illustrious Member Admin
Joined: 6 Jahren ago
Posts: 2073

Posted by: @robfranssen-fr

Looks like the issue i thought having is related to the ‘extension’ .local

Good call! Yes, that was my feeling too - and the reason why I suggested using a different domain. I'll check back whether this is a bug or a feature 😉

THX!



ReplyQuote
(@Anonymous)
New Member Guest
Joined: 1 Sekunde ago
Posts: 0
Topic starter

@random

Neither a bug, nor a feature. ‘.local’ simply doesn’t exist in the list of Root Zones.

http://www.iana.org/domains/root/db

Have a nice day, Rob



ReplyQuote
(@random)
Illustrious Member Admin
Joined: 6 Jahren ago
Posts: 2073


@robfranssen-fr I wouldn't be too sure that's the reason. You could try i.like.rob as domain for a counterprove. .rob is not a Root Zone either - but I would guess it works too.

Generally .local addresses are usually used for "local" servers that can not be reached from the Internet but in the LAN only. Interesting .local seem to be resolved differently by DNS depending on the clients IP address 🤔 Every day you learn - and sometimes it's just a bug 😉

THX!



ReplyQuote
(@Anonymous)
New Member Guest
Joined: 1 Sekunde ago
Posts: 0
Topic starter

@random

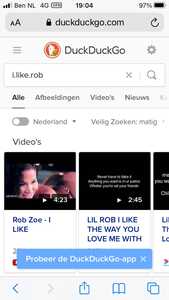

For the sake of the exercise, let’s try ‘i.like.rob’ (are you sure you want to try this particular domain? 😀).

I switched WiFi OFF again and found:

EB076B17 FFE7 4C4A 8258 101EF4E52170

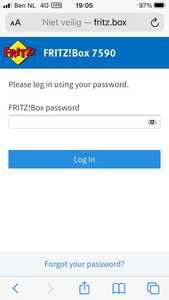

to make sure, i also tried ‘fritz.box’ and again i include the result

4C2596E5 402B 4267 9080 17D5E19AFA81

It seems that eBlocker doesn’t swallow what’s not in list of Root Zones.

Rob



Random reacted
ReplyQuote
(@random)
Illustrious Member Admin
Joined: 6 Jahren ago
Posts: 2073


@robfranssen-fr Convinced! 👍

THX for your support!
